Switchgears for outdoor transformer stations

(type RST Type for pylon transformer stations or in-built ones for brick transformer stations)

RST switchgears are LV distribution switchboards for consumption up to 1000 A. They are designed for transformer stations used for power supplying consumer sites with the nominal transformer power of up to 630 kVA. These switchgears are designed and manufactured in compliance with standards ČSN EN 61 439-1 ed.2, ČSN EN 61 439-2 ed.2 and ČSN EN 61 439-5 ed.2.

SVS cabinet (B, P, U, M1, M2, DTR, ZT).


  • lattice masts
  • prestressed concrete columns
  • prefabricated tower and cable transformer stations
  • brick tower, concrete and cable transformer stations
  • reconstruction of old transformer stations

Technical specifications:

  • Nominal voltage: 3×400 / 230 V / TN-C, 50Hz
  • Nominal current of main busbars: 400-1000 A
  • Switchgears short-circuit resistance: 35 kA / 1 s
  • Protection against dangerous contact voltage: by automatic disconnection from the power supply
  • Switchboard cover: IP 43/00
  • Cabinet material: stainless steel sheet
  • Surface finish: powder coating (RAL 8002, 6011)

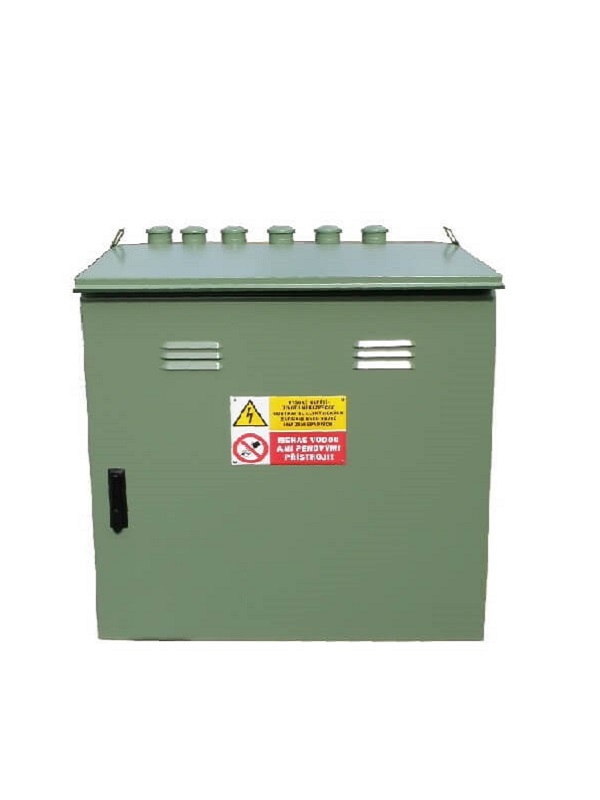

RST/P, with two doors

RST/B, with two doors

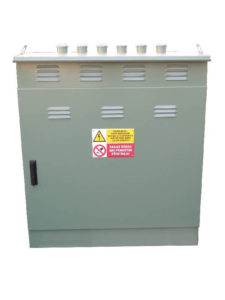

RST/U, with two doors

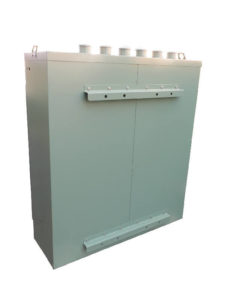

RST/U, rear view

RST/M1, with one door

RST/M1, rear view

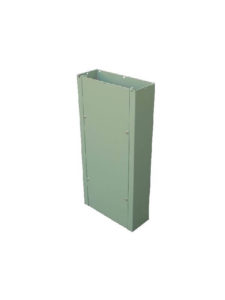

Cable cover under RST/M1

Cable cover under RST/P,B

Pedestal under the switchgears RST/P,B

RST/ZT4, built-in

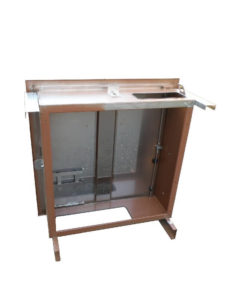

RST/ZT4, rear view

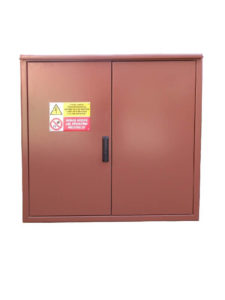

RST/ZT8,10, built-in, two winged-type

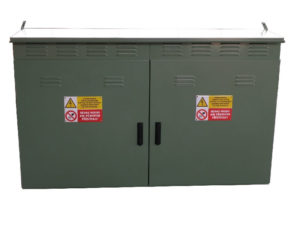

RST/DTR, for two transformers

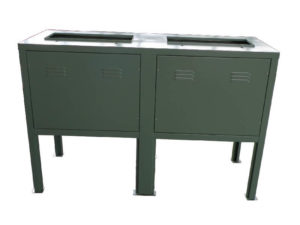

Pedestal under RST/DTR
