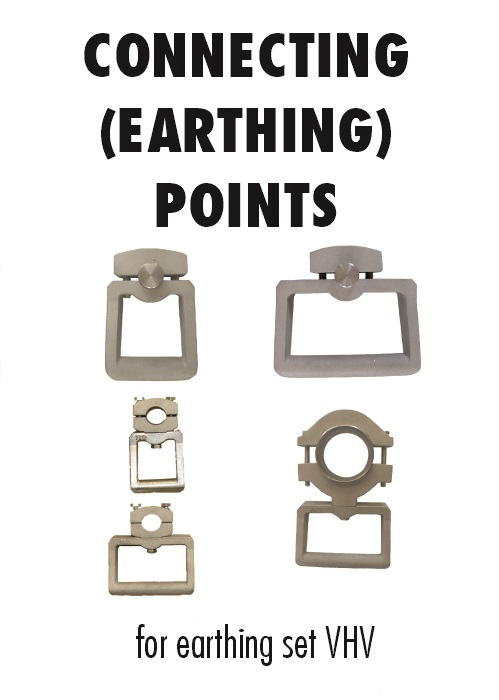

Connecting points VHV

Connecting points serve to create stable and clearly defined place for safe and reliable fixing short-circuiting (earthing) set in the VHV electric stations. The points are produced from the Al alloy. They are supplied with the bar of diameter 25 mm for connection of conductor clamp.
Points are determined for conductor diameter 22-37 mm or 70-100 mm.
The points are simple or double and fixed or revolving.

Documentation Connecting points VHV EN download


Material: alloy Al
Short-circuit current: 30 kA/1 s
