Discharging equipment – for capacity battery LV

Type: 830.001

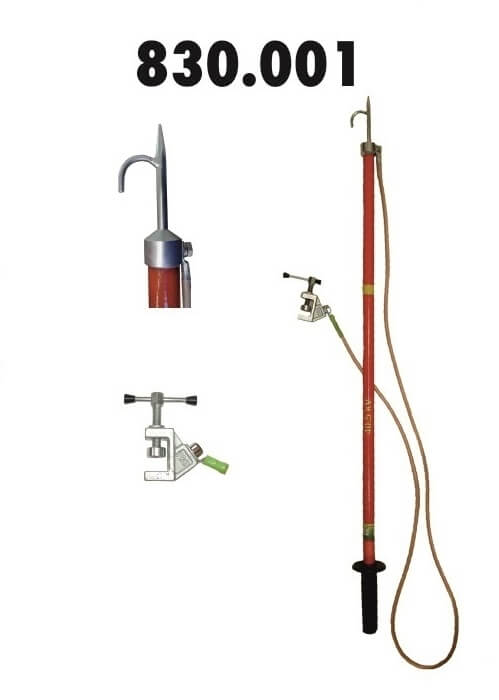

Discharging set is designed for discharging of residual charge at the electrical circuits capacities (common remote control transmitters, electrical separators, etc.). The set consists of insulating pole ended with contact electrode and of earthing clamp that is noc nected to the contact electrode by Cu cable in transparent isolation. Insulating pole is made of glass – fabric laminate which is suitable for its high electrical and mechanical resistance and stability. It fulfills the requirements on the protection equipment for outdoor use. The set is determined for indoor use, as well as for outdoor use under normal climatic conditions. The handle is provided with the protecting rubber ring (hand guard). Discharging equipment complies with standards ČSN EN 61230 ed.2, IEC 61230, DIN 46235. When required it is possible to supply discharging set in extra version after approvement.



Documentation 830.001EN download

Description

Length of pole: 500 mm
Length of handle: 140 mm
Length of insulating part: 320 mm
Pole diameter: 23 mm
Contact electrode lenght: 140 mm
Cross section of cable: 16 mm2
Length of cable: 1500 mm
Pole material:  glass-fabric laminate for outdoor use
Weight of equipment: 1 kg
Climatic group: temperature -25°C – +55°C, humidity 20% – 96%
